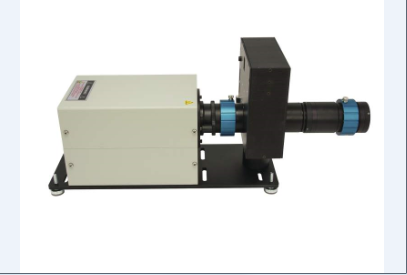

主要特点：

简单光学耦合

完全集成、即插即用

光强可调

手动光开关

Features：

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter

灯泡类型(Lamp Type)：Xe, Ozone Free

灯泡功率（Lamp Wattage）：100 W

光斑直径（Output Beam Size）：33 mm

灯泡寿命（Average life）：1000 h

发散角Beam Divergence,：Half Angle4.0 ± 0.5 °

F/#：F/4

透镜材料（Lens Material）：Fused Silica

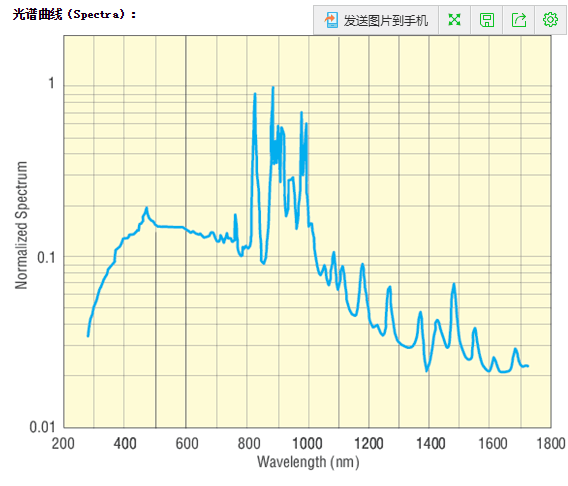

光谱范围（Spectra Range）：260-2500 nm

光波动（Light Ripple）：<0.2 % rms

线性（Line Regulation）：001

输入（Power Requirements）： 200-240 VAC, 50/60 Hz

滤光片片尺寸（Filter Size）:25.4 mm

滤光片轮（Filter Wheel）：Six Positions (Order Filters Separately)

操作温度（Operating Temperature）：5 to 40 °C

操作适度（Operating Humidity）：<80% relative humidity (non-condensing)

光学开关

光学开关用于关闭光路，不需要光照时保护使用人员免受紫外线辐射，比如：预热光源、

安装光学元件，无需频繁开关光源。

Manual Shutter

A manual shutter is integrated into the THL100 to allow the user to close off the

light path, blocking any light output from the system. This allows the user to be

protected from UV radiation when light output is not required, such as warming

up the lamp while preparing a setup or making a minor change in setup, without

frequent and unnecessary restarts of the lamp.

六档滤光片轮

六档滤光片轮，可以安装1-6个不同滤光片，直径25.4mm（1英寸）,便于滤光片。

Integrated Six Position Filter Wheel

A filter wheel is integrated into the assembly of the THL100. Up to six

order-sorting or neutral density filters can added (1.0 in or 25.4 mm diameter,

0.2 in. or 6 mm thickness) and filters can be changed.

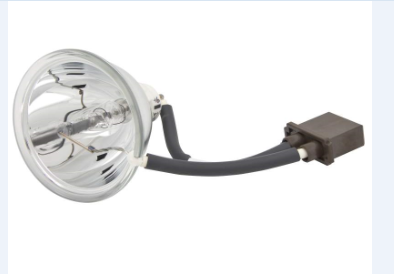

Xenon Arc Lamp, 100 W

100 W氙灯灯泡（6002）

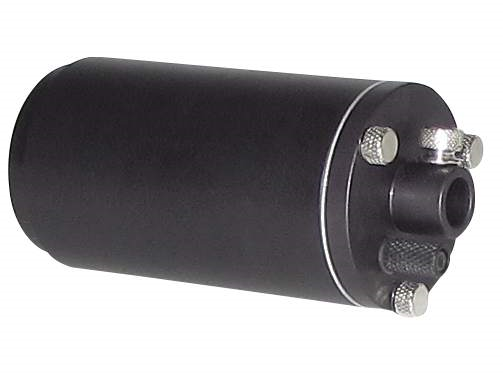

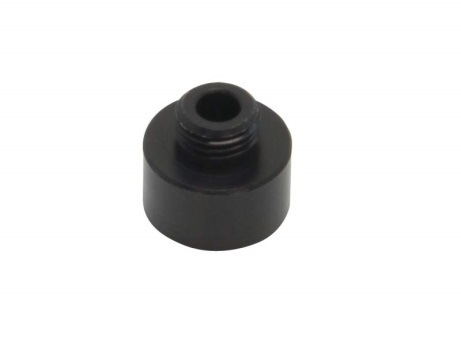

光、光纤耦合接口（Optical Coupling Accessories）

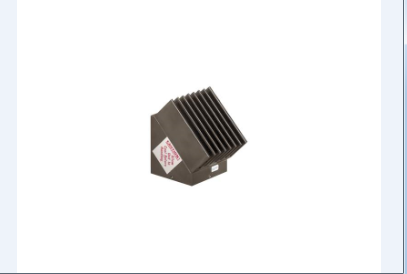

360°光路转向器

360°旋转，镀ALMgF2增反膜，光谱范围200-2500nm，用于宽谱输出。

 Full Reflector Beam Turning Mirror,

200-20,000 nm

The Full Reflector Beam Turning Mirror is are coated with an AlMgF2

coating optimized to increase reflectivity in the ultraviolet. It is useful

from 200 nm to 30 μm spectral range. Use it when broadband output is needed.
